We can deal with custom-made products widely to meet new needs with thermistors and thermistor temperature sensors centered.
For automobiles
-
Rechargeable battery temperature sensor
Rechargeable Battery Temperature Sensor
- Operating temperature range
- -40 ℃ to 85 ℃
Rechargeable battery temperature sensor
Rechargeable Battery Temperature Sensor
- Operating temperature range
- -40 ℃ to 85 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25=10kΩ B25/85=3435K - About 30 seconds
(In flowing air)-40 ℃ to 85 ℃ -
- The characteristics and shape can be customized. (Separately discussible)
- This sensor controls the charging state optimally by monitoring heating temperature at battery charging or discharging.
-

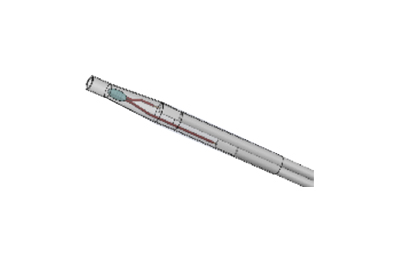

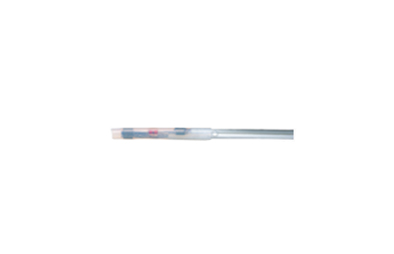

Motor temperature sensor
Teflon seal for high temperature
- Operating temperature range
- -40 ℃ to 220 ℃
Motor temperature sensor
Teflon seal for high temperature
- Operating temperature range
- -40 ℃ to 220 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R110=(2.5kΩ) B0/100=(3970K) 1.2mW/ ℃
25 ℃ in still airAbout 20 seconds in still air -40 ℃ to 220 ℃
Temperature sensing element of sensor -
- This sensor is sealed with Teflon to endure high temperatures. This sensor prevents burning mainly caused by abnormal heating of the motor coils.
-

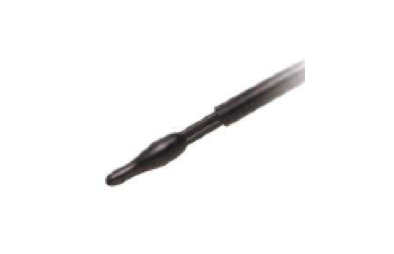

Rechargeable battery temperature sensor
Surface temperature high-precision measuring type
- Operating temperature range
- -30 ℃ to 85 ℃
Rechargeable battery temperature sensor
Surface temperature high-precision measuring type
- Operating temperature range
- -30 ℃ to 85 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25=
10kΩ±1%B25/85=
3435K±1%6mW/ ℃
25 ℃ in still airWithin 3 seconds
In agitated water-30 ℃ to 85 ℃ -
- This sensor monitors the increase in the temperature of a lithium-ion battery or the like and controls fan cooling. This sensor prevents degradation or ignition of the battery caused by sudden temperature changes.
-

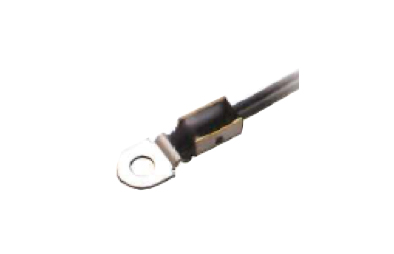

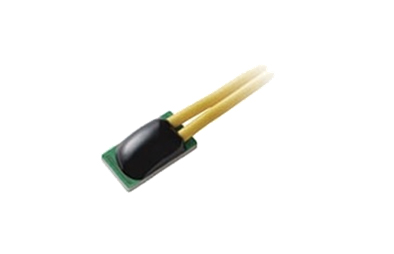

Temperature detection sensor for surface temperature
Standard type
- Operating temperature range
- -20 ℃ to 100 ℃
Temperature detection sensor for surface temperature
Standard type
- Operating temperature range
- -20 ℃ to 100 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25=
10kΩ±5%B25/50=
3950K±2%3.5mW/ ℃
25 ℃ in still airWithin 15 seconds
On aluminum hot plate-20 ℃ to 100 ℃ -
- This sensor plays a role of thermal management associated with heating of an power element such as a DC/DC converter or an inverter.
-

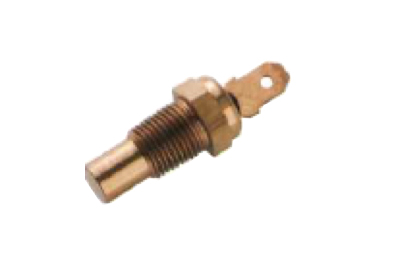

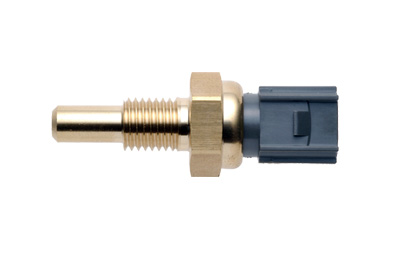

Coolant temperature sensor
Coolant temperature sensor
- Operating temperature range
- -40 ℃ to 120 ℃
Coolant temperature sensor
Coolant temperature sensor
- Operating temperature range
- -40 ℃ to 120 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25=2kΩ B25/50=3500K - Within 12 secondsIn agitated water -40 ℃ to 120 ℃ -
- The characteristics and shape can be customized. (Separately discussible)
- This sensor senses the temperature of the engine cooling water and contributes to controlling the engine air-fuel ratio and cooling fan.
- This sensor is directly mounted on the engine, measures the temperature (water temperature) of the cooling coolant, and prevents the seizure of the engine by controlling the cooling system.
-
Fuel temperature sensor
- Operating temperature range
- -40 ℃ to 70 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25 2.1kΩ B25/50 3480K 6.5mW/ ℃ In water Within 60 seconds
In agitated water-40 ℃ to 70 ℃ -
- The characteristics and shape can be customized. (Separately discussible)
- This sensor senses the fuel temperature in the fuel tank and contributes to controlling the engine air-fuel ratio.
- This sensor detects the fuel temperature in the fuel tank and is used to meet environmental regulations.
-
Evaporater temperature sensor
Epoxy coat type
- Operating temperature range
- -40 ℃ to 70 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25 2.1kΩ B25/50：3480K 6.5mW/ ℃ In water Within 60 seconds
In agitated water-40 ℃ to 70 ℃ -
- The characteristics and shape can be customized. (Separately discussible)
- This sensor senses the evaporator temperature and contributes to controlling the air conditioner comfortably and efficiently.
- This sensor measures the temperature of the blow-out air after evaporator and controls the air conditioner comfortably and efficiently.
-

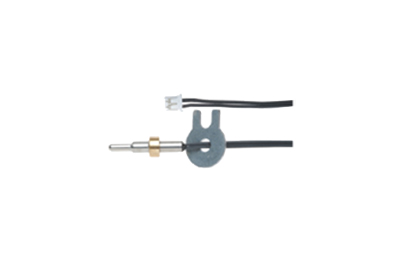

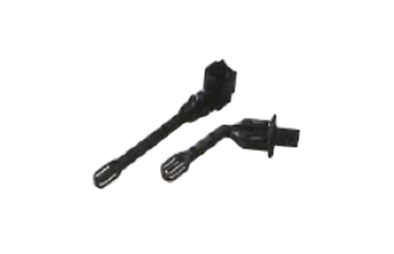

Evaporater temperature sensor
Bracket type
- Operating temperature range
- -30 ℃ to 85 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25=(9kΩ) B0/25=(3873K) 1mW/ ℃
25 ℃ in still air2s
In agitated water-30 ℃ to 85 ℃ -
- The characteristics and shape can be customized. (Separately discussible)
- This sensor has an integrally molded resin-made mounting bracket.
- This sensor measures the temperature of the blow-out air after evaporator. This sensor has an integrally molded resin-made mounting bracket.
-

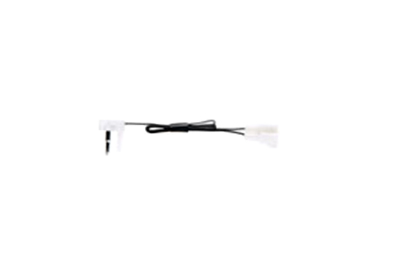

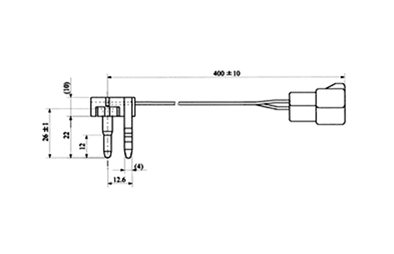

Evaporater temperature sensor
Fin type
- Operating temperature range
- -40 ℃ to 80 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R0=11.
36kΩB0/25=
3400K4.5mW/ ℃
( in still air)About 3 seconds
In agitated water-40 ℃ to 93 ℃ -
- Insulation resistance: 100 MΩ or more
- Withstand voltage: 1500 V AC for 1 minute
- This sensor is a type of putting into the fin of the heat exchanger, which allows the temperature of the fin to be directly measured.
- This sensor controls the cooling system by measuring the temperature of the evaporator and prevents frost generation as well. This sensor is directly incorporated in the evaporator fin.
-
Radiator temperature sensor
- Operating temperature range
- -40 ℃ to 130 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range -(*1) - - - -40 ℃ to 130 ℃ *1 The characteristics of the water temperature sensor are dynamic characteristics. The zero-power resistance is not specified.
-
- The characteristics and shape can be customized. (Separately discussible)
- This sensor senses the radiator temperature and contributes to the control of the cooling fan.
- This sensor detects the radiator temperature and controls the operation of the cooling fan.
For household and housing
-

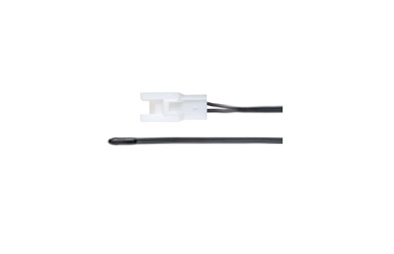

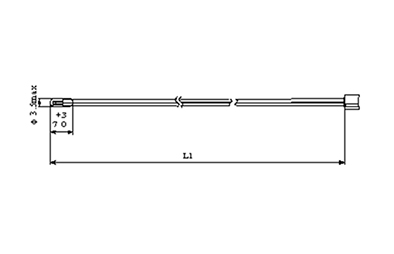

For air conditioners, coating type
- Operating temperature range
- -20 ℃ to 105 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25：10KΩ B25/50：3950K 2.5mW/℃（in still air） 8.0 sec. max.（in stirred water） -20℃ to 105℃ -
- Characteristics and connectors may be customized.（Please contact our sales representative.）
- nsulation resistance：100MΩ, min.Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec
-

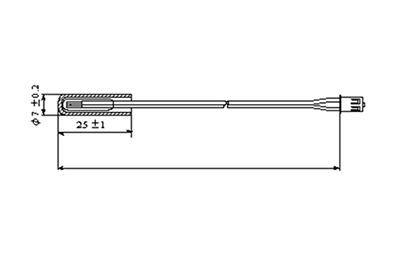

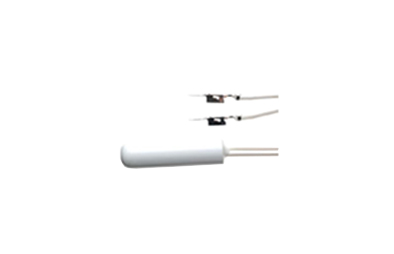

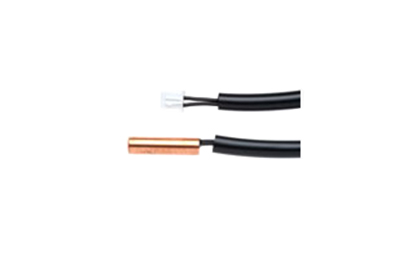

For air conditioners, CAN type
- Operating temperature range
- -40 ℃ to 150 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25：10KΩ B25/50：3950K 5.0mW/℃（in still air） 10 sec. max.（in stirred water） -20℃ to 105℃ -
- Characteristics and connectors may be customized.（Please contact our sales representative.）
- Insulation resistance：100MΩ, min.Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 sec
- Up-to-150℃ capable types optionally available depending on applications （cross-linked polyethylene cable used）
-

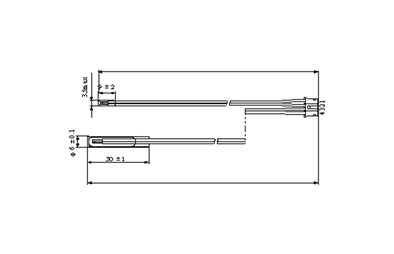

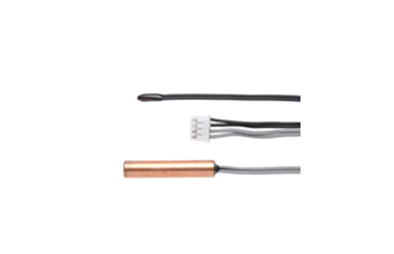

For air conditioners, contained in connectors
- Operating temperature range
- -20 ℃ to 105 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25：10KΩ B25/50：3950K 2.5mW/℃（in still air） 8.0 sec. max.（in stirred water） -20℃ to 105℃ R25：10KΩ B25/50：3950K 5.0mW/℃（in still air） 10 sec. max.（in stirred water） -20℃ to 105℃ -
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min. Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second
-
For refrigerators
- Operating temperature range
- -30 ℃ to 80 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R0：6.35ＫΩ B0/25：3830K 7.0mW/℃（in still air） 15 sec. max.（in stirred water） -30℃ to 80℃ -
- Sensing temperatures of refrigerators, freezers, ice trays, etc.
- Characteristics and connectors may be customized. （Please contact our sales representative.）
- Insulation resistance：100MΩ, min. Withstanding voltage：1500V AC for 1 minute or 1800V AC for 1 second
For For air conditioners, coating type household appliances
-
Hot water supplies
（with-leads type）
- Operating temperature range
- -20 ℃ to 120 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R50 3.485KΩ B0/100 3450K 3.5mW/℃（in still air） 2.0 sec. max. （90％ response in water） -20℃ to +120℃
-

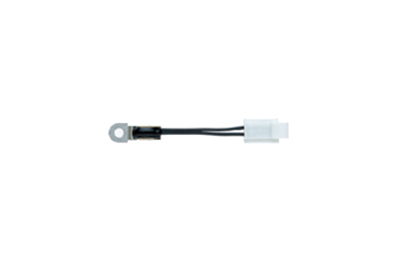

For surface temperature sensing
- Operating temperature range
- -20 ℃ to 105 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R25 10kΩ B25/50 3950K About 3.5mW/℃（in still air） 15 sec. max. （on an aluminum plate） -20℃ to +105℃ -
- Characteristics and connectors may be customized.（Please contact our sales representative.）
- Insulation resistance 100MΩ, min. between terminal board and terminals（500V DC megohmmeter）
- Withstanding voltage: No abnormalities observed between terminal board and terminal（1800V AC for 1 sec.）
-
For high temperature sensing
- Operating temperature range
- -40 ℃ to 200 ℃
-
Zero-power resistance B-value Dissipation constant Thermal dissipation constant Operating temperature range R100 3.3kΩ B0/100 3970K 4.2mW/℃（in water） 8.0 sec. max. （in stirred water） -40℃ to +200℃
