We provide you with high reliability through the development of ceramic technology and electrode technology that have been accumulated for years and thermistor elements that have been improved over and over.
-

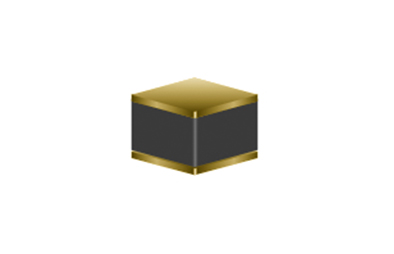

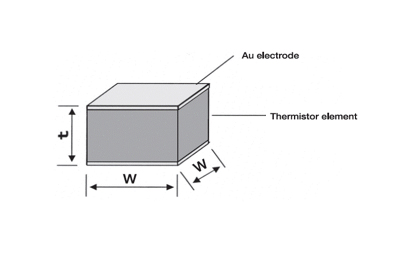

NBC Thermistors
Bare chip thermistor with long-term reliability
and no aging degradation
- features
-
- NBC thermistor has no aging degradation and has long-term reliability in the electric characteristics.
- This thermistor is used in Au wire bonding mounting.
- Applications
-
- This thermistor is used in a semiconductor laser.
-

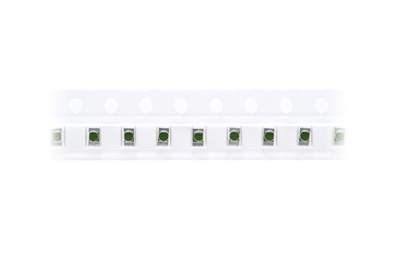

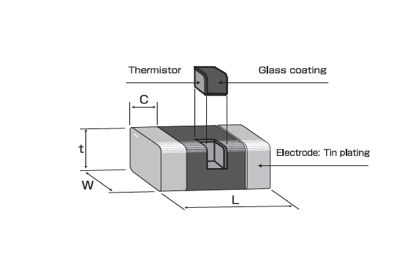

NSS Thermistors
Surface-mounting type chip thermistor with high precision usable at high temperatures
- Operating temperature range
- -40 ℃ to 150 ℃
NSS Thermistors
Surface-mounting type chip thermistor with
high precision usable at high temperatures- Operating temperature range
- -40 ℃ to 150 ℃
- features
-
- This thermistor can be used at high precision (resistance value tolerance ±1%, B constant tolerance ±1%).
- This thermistor can be used at high temperatures (serviceable temperature range: -40 ℃ to +150 ℃).
- This thermistor is excellent in weather resistance because a glass coat is used on four sides.
- This product complies with the RoHS directive.
- Applications
-
- TCXO circuit, LCD backlight circuit, rechargeable battery overcharging protection circuit, CPU temperature monitor circuit, optical pickup circuit, HDD circuit, autofocus circuit, etc.
-

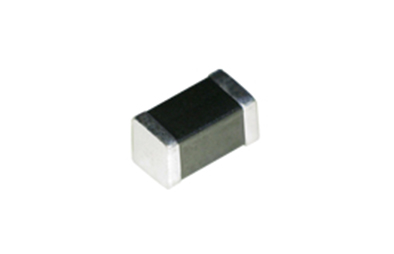

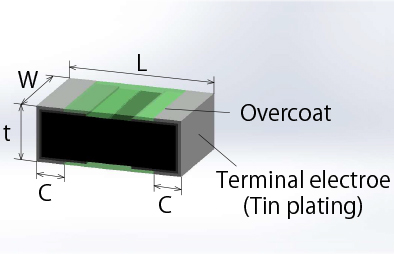

NSM Thermistors
Surface-mounting type chip thermistor
- Operating temperature range
- -40 ℃ to 125 ℃
NSM Thermistors
Surface-mounting type chip thermistor
- Operating temperature range
- -40 ℃ to 125 ℃
- features
-
- This product is a large-sized (3216 and 2012) chip thermistor.
- This product complies with the RoHS directive.
- Applications
-
- TCXO circuit, LCD backlight circuit, rechargeable battery overcharging protection circuit, CPU temperature monitor circuit, optical pickup circuit, HDD circuit, autofocus circuit, etc.
-

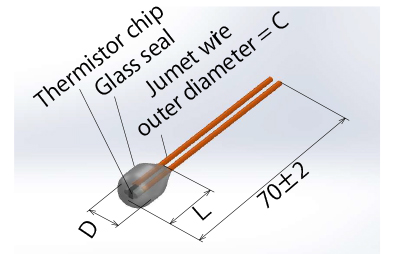

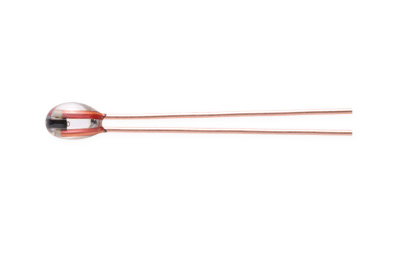

NGR Thermistors
Glass sealed radial leads chip thermistor
- Operating temperature range
- -55 ℃ to 300 ℃
NGR Thermistors
Glass sealed radial leads chip thermistor
- Operating temperature range
- -55 ℃ to 300 ℃
- features
-
- The NGR thermistor series is a glass-sealed radial lead thermistor.
- This thermistor offers excellent heat resistance.
- Applications
-
- Temperature sensor for water heaters
- Temperature sensor for engine control
- Temperature sensor for air conditioners
-

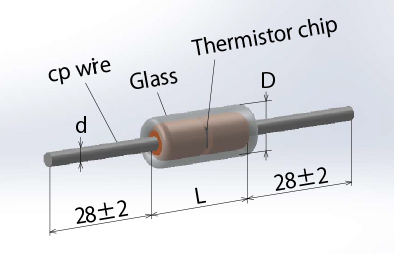

NDH Thermistors
Glass sealed axal leads chip thermistor
- Operating temperature range
- -40 ℃ to 300 ℃

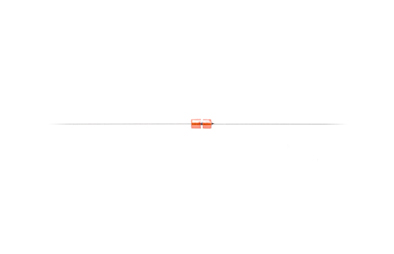

NDH Thermistors
Glass sealed axal leads chip thermistor
- Operating temperature range
- -40 ℃ to 300 ℃
- features
-
- The NDH thermistor series is a glass-sealed axial lead thermistor.
- This thermistor offers excellent heat resistance. A taping packaging specification is also available, and this thermistor can be automatically mounted on a circuit board.
- Applications
-
- For automobiles
- For room air-conditioning
-
NRD Thermistors
Disc thermistor with lead
- Operating temperature range
- -20 ℃ to 100 ℃
- features
-
- The NRD thermistor series is a radial lead disc thermistor.
- Automatic mountable taping is also available.
- This product complies with the RoHS directive.
- Applications
-
- Temperature compensation for electronic circuits
-

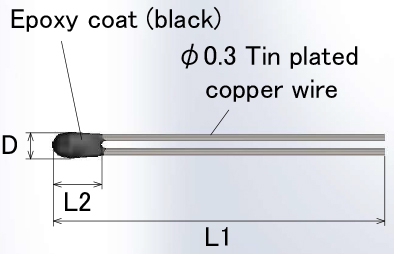

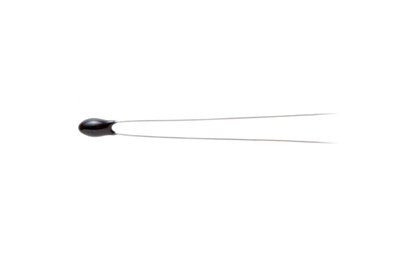

NRC Thermistors
Chip Thermistor with lead-wire
- Operating temperature range
- -20 ℃ to 100 ℃
- features
-
- The NRC thermistor series is a epoxy-coated thermistor.
- This product complies with the RoHS directive.
- Applications
-
- Rechargeable battery overcharging protection circuit
- Element in various temperature sensors
- Temperature compensation for electronic circuits
-
PTC Thermistors
- features
-
- The leadless type is designed to be used for heaters.
- This product complies with the RoHS directive.
- Applications
-
- For various heaters
- Click here to download the catalog PDF.
- Catalog files
